- Size: 22m*5.2m*1.6m
- Place of Origin: Qingzhou, Shandong, China
- Brand Name: JULONG
- Model Number: JLCSD250
- Weight: 400000.000 kg
1. Julong Sand Dredgers:
Various types: mainly cutter suction dredger, bucket chain dredger, jet suction dredger
Dredging depth: maxi. 20m
Dredging capacity: maxi. 5000m3/hr waterflow
Discharge distance: 2000m or more with pump station
Usage: sand dredging, waterway cleaning, reclamation work, mining job, etc.
2. Julong Dredgers Features:
1. Completely assembled and fully tested before delivery
2. Transportable by road, rail or sea
3. Simple, rapid assembly and dismantling at working site
4. Customized designs are always available, which will meet every customer's need.
5. Standard design, which implies early delivery and low price
6. Spare parts available from stock
7. Reliable hydraulic system
8. Efficient fuel consumption
9. Easy operation with two workers
10. Wide ranges of optional equipment available
11. Optional equipment such as anchoring system, spud carriage system, swivel bend, accommodation room, ets. are available
3. Cutter Suction Dredgers Model: JLCSD250 (For reference, custom design is available.)
| Principle Dimensions | |
| (1) Max. Dredging Depth | 8 .0 m |
| (2) Discharge Distance | 500 m |
| (3) Waterflow | 800 m 3 /hr |
| Main Pontoon | |
| (1) Length | 11.0 m |
| (2) Width | 2.2 m |
| (3) Depth | 1.6 m |
| Side Pontoons | |
| (1) Length | 14.0m |
| (2) Width | 1.5m |
| (3) Depth | 1.6m |
| Dredging Pump | |
| (1) Made | Shijiazhuang Pump |
| (2) Model | 20 0WN |
| (3) Waterflow | 10 00 m 3 /hr |
| Main Engine | |
| (1) Manufacturer | Cummins |
| (2) Rated Power with RPM | 336KW @ 1 8 00 RPM |
| (3) Amount | 1 set |
| Cutter | |
| (1) Type | Crown |
| (2) Driver | Hydraulic Motor |
| (4) Diameter | 1000mm |
| (5) Cutter Shaft Power | 40kw |
| Ladder Winch | |
| (1) Line Pull | 60 KN |
| (2) Line Speed | 0-20m/min |
| (3) Wire Size | Φ16mm |
| (4) Driver | Hydraulic Motor |
| Swing Winch | |
| (1) Line Pull | 40 KN |
| (2) Line Speed | 0-20m/min |
| (3) Wire Size | Φ16mm |
| (4) Driver | Hydraulic Motor |
| Spuds | |
| (1) Amount | 2 pcs |
| (2) Driver | Hydraulic Ram |

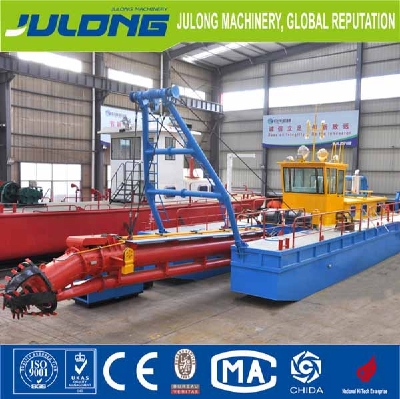

4. Cutter Suction Dredgers Photos for reference.
- Size: 22m*5.2m*1.6m
- Place of Origin: Qingzhou, Shandong, China
- Brand Name: JULONG
- Model Number: JLCSD250
- Weight: 400000.000 kg
