- Place of Origin: Qingzhou, Shandong, China
- Brand Name: JULONG
- Model Number: JLCSD300
Julong Sand Dredgers:
Various types: mainly cutter suction dredger, bucket chain dredger, jet suction dredger
Dredging depth: maxi. 20m
Dredging capacity: maxi. 5000m3/hr waterflow
Discharge distance: 2000m or more with pump station
Usage: sand dredging, waterway cleaning, reclamation work, mining job, etc.
Qingzhou Julong Environment Technology Co., Ltd is a professional manufacturer of dredgers, aquatic weed harvester, gold & iron mining machinery and sand processing machinery, with about 20 years’ experience. With an excellent technology team, we can design and manufacture highquality dredgers and machinery according to customers’ requests. Our products are famous for easy operation, reliable performance, low cost and long working life. JULONG machines have been exported to dozens of countries in Southeast Asia, South Asia, Africa, and South America.
1. Completely assembled and fully tested before delivery
2. Transportable by road, rail or sea
3. Simple, rapid assembly and dismantling at working site
4. Customized designs are always available, which will meet every customer's need.
5. Standard design, which implies early delivery and low price
6. Spare parts available from stock
7. Reliable hydraulic system
8. Efficient fuel consumption
9. Easy operation with two workers
10. Wide ranges of optional equipment available
11. Optional equipment such as anchoring system, spud carriage system, swivel bend, accomodation room, ets. are avaiable

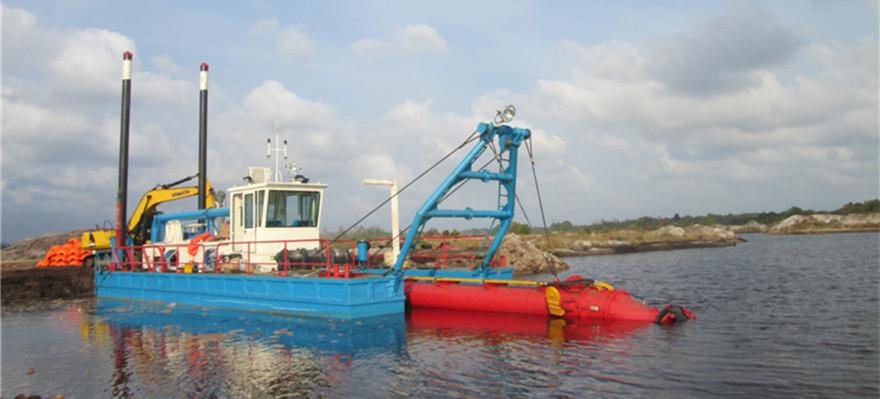

The dredger is non self-propelled, dismountable cutter suction dredger of steel construction. It is able to berth and dredge at any waters both in the coastal area and inland rivers.The dredger consists of a main pontoon and two side pontoons. It is easy to dismantle or mount for transportation by road, rail or water, and is easy to reassemble at project site. The engine and dredge pump are located in the main pontoon. The two side pontoons serve as fuel tank, ballast tank and dry tank.
- Place of Origin: Qingzhou, Shandong, China
- Brand Name: JULONG
- Model Number: JLCSD300
Ser. | Model | Dredging Capacity | Dredging Depth | Dimensions | Suction/Discharge Pipe Dia. | Cutter Power | Engine(s) Power |
1 | JLCSD-200 | 500m3/hr | 1-8m | 21*4.8*1.4m | 250/200mm | 30kw | 224kw |
2 | JLCSD-250 | 800m3/hr | 1-10m | 25*5.2*1.6m | 300/250mm | 40kw | 336kw |
3 | JLCSD-300 | 1200m3/hr | 1-12m | 27*5.4*1.6m | 350/300mm | 60kw | 559kw |
4 | JLCSD-400 | 2200m3/hr | 1-14m | 33*6.4*1.8m | 400/400mm | 100kw | 746kw |
5 | JLCSD-450 | 3000m3/hr | 1.5-15m | 38*7.3*2.0m | 500/450mm | 130kw | 895kw |
6 | JLCSD-500 | 3500m3/hr | 1.5-16m | 40*7.8*2.0m | 600/500mm | 170kw | 1231kw |
7 | JLCSD-550 | 4500m3/hr | 1.5-18m | 44*8.8*2.2m | 650/550mm | 220kw | 1690kw |
8 | JLCSD-600 | 6000m3/hr | 1.5-20m | 48*9.0*2.4m | 700/600mm | 300kw | 2190kw |
